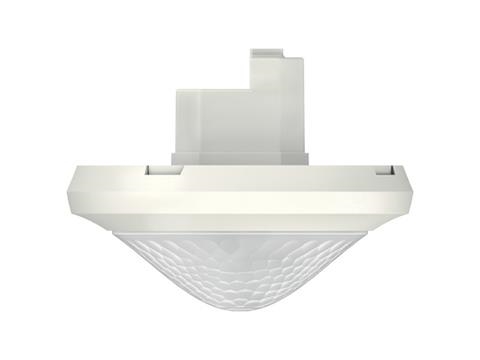

Détecteur de présence Blanc encastré esclave 360° 9m IP54
Détecteur de présence Blanc encastré esclave 360° 9m IP54
Non contractual photo
Détecteur de présence Blanc encastré esclave 360° 9m IP54
TheRonda S360 Slave UP WH presence detector is used to extend the detection area. Maximum 10 detectors can be connected to each other to extend the detection area. in case of presence, the presence signal is transmitted to theRonda S360 - 100 UP WH master presence detector.
Round detection area 360° up to 9 m diameter (64 m²), possibility to limit the detection area With segments
Instant start - up due to factory presets
Sensitivity of detection adjustable by remote control
Test mode to check operation and detection zone
Recessed ceiling mounting, optional surface mount housing.
TECHNICAL FEATURES
Operating voltage: 110 to 230V AC + 10%, - 10% 50 to 60 Hz
Standby power consumption: ~ 0.1 W
Recessed ceiling mounting at a mounting height of 2 to 4 m, optional surface mount housing
360° detection up to 8 m for transverse movement, and up to 4 m for seated person or frontal movement
Protective degree IP54
Allowed temperature from - 15 to + 50 °C
Connection via screw terminals, max. cable cross section 2 x 2.5 mm².
