Détecteur de présence Blanc encastré esclave 360° 24m IP54
Détecteur de présence Blanc encastré esclave 360° 24m IP54
Non contractual photo
Détecteur de présence Blanc encastré esclave 360° 24m IP54

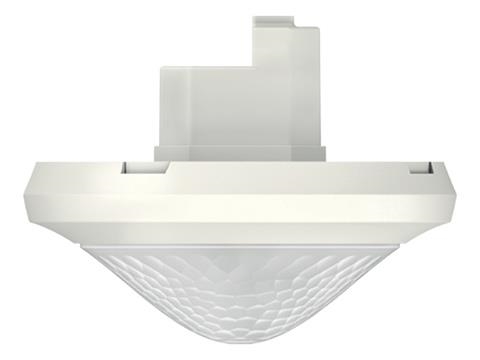

TheRonda P360 Slave UP WH presence (and motion) detector is used to extend the detection area.
If the detection area covered by a single presence detector is not sufficient (large rooms, large offices, etc.), up to 10 detectors can be connected in parallel master / slave. Presence detection is carried out jointly by all detectors. The master measures the brightness, manages the push buttons and controls the lighting. All other detectors are used as slaves, they transmit the presence signal to the master detector.
TheRonda P360 Slave UP WH detector can be used With theRonda P360 - 100 M UP WH or theRonda P360 - 101 M UP WH master detector.
The 360° detection area extends up to 25 m in diameter (452m²).
It is intended for flush ceiling mounting.
However, surface mounting is possible by using the 907 0 912 - 110A WH housing.
Mixed light detection (suitable for all types of lighting).
Preset for immediate start - up.
Test mode to check operation and detection area.
TECHNICAL FEATURES
Operating voltage from 110 to 230V 50 to 60 Hz
Consumption: approx. 0.1W
Mounting height from 2 to 3.5m; possible up to 10m
Protective degree IP54
Screw terminal connection, maximum cable cross - section 2 x 2.5mm²
